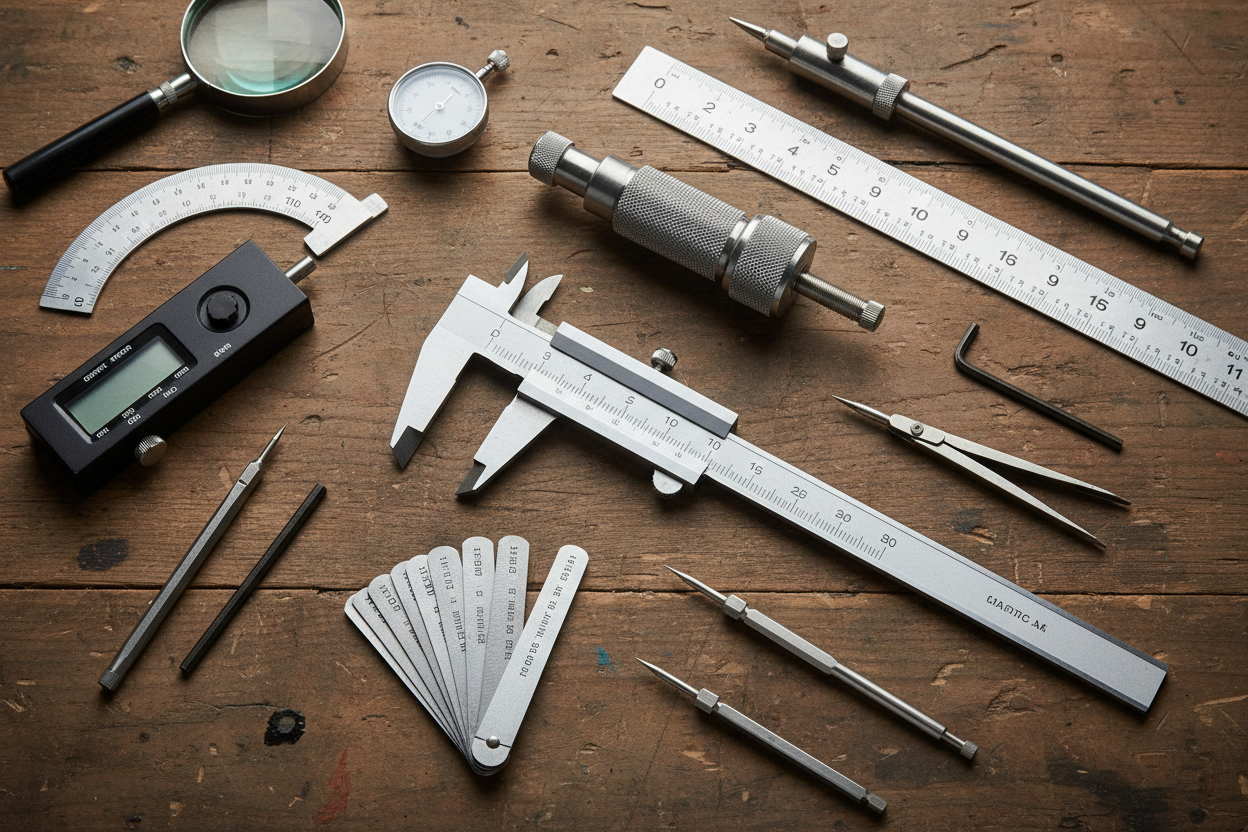

What Is a Vernier Caliper?
A vernier caliper is a precision measuring instrument used to measure internal and external dimensions, depths, and step measurements with high accuracy. Capable of measuring to 0.02mm or 0.001" resolution, it's an essential tool for machinists, engineers, woodworkers, and anyone who needs measurements more precise than a standard ruler can provide.
Types of Calipers
1. Vernier Caliper
The traditional vernier caliper uses a vernier scale — a secondary scale that slides alongside the main scale — to achieve precise readings. No batteries required, highly durable, and preferred in environments where electronic tools may be unreliable. Reading a vernier scale takes practice but provides excellent accuracy.
2. Dial Caliper
The dial caliper replaces the vernier scale with an analog dial gauge for easier reading. The dial displays the fractional measurement directly, making it faster and more intuitive than a traditional vernier. Popular in workshops and quality control environments.
3. Digital Caliper
The digital caliper features an LCD display that shows measurements instantly in millimeters or inches (switchable). Zero at any position for relative measurements, and many models include data output for connecting to measurement systems. The most user-friendly option for most applications.
What Can a Caliper Measure?
A standard caliper measures four types of dimensions: outside dimensions (using the large jaws), inside dimensions (using the small upper jaws), depth (using the depth rod at the end), and step measurements (using the flat back edge of the jaws). This versatility makes it one of the most useful precision tools available.
How to Read a Vernier Caliper
To read a vernier caliper: first read the main scale to the last whole millimeter before the vernier zero. Then find which vernier scale line aligns exactly with a main scale line — this gives the decimal portion. Add the two values for your final measurement. With practice, readings become fast and reliable.
Choosing the Right Caliper
For most workshop and DIY use, a digital caliper offers the best combination of accuracy and ease of use. For professional metrology or harsh environments, a vernier or dial caliper may be more appropriate. Consider measuring range (6" / 150mm is standard), resolution (0.01mm or 0.0005"), jaw material (stainless steel for durability), and IP rating for coolant resistance in machining environments.
Care and Maintenance
Keep calipers clean and dry. Wipe jaws with a soft cloth after use. Store in the protective case to prevent damage. For digital models, remove the battery if storing long-term. Check calibration periodically against a gauge block or known standard.
