About This

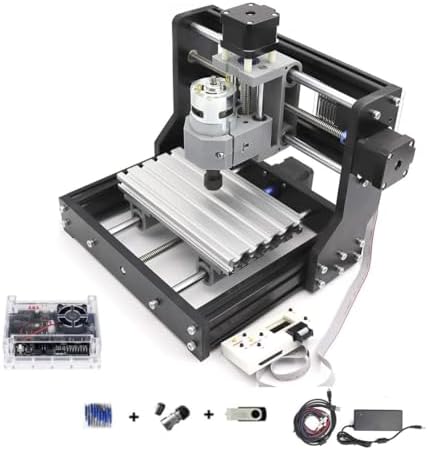

• Model: Upgrade Version 1610 Pro; With White Offline Controller,you can operate this machine without connect to the computer; offline controller included a SD card reader to write into the root directory G-code files or NC file; Support manually adjust X, Y, Z axis location as engraving starting point,manually open or close spindle
• Working area: 7.08x3.93x1.77 inches/18x10x4.5cm ; Frame size: 11.81x10.23x9.84 inches/30x26x25cm; Type:USB port Desktop cnc router; Spindle: Dia 45mm 10000rpm max power 120W; ER11-3.175mm can be replaced 0-7mm collet; Nema17 42 stepper motor 1.3A/0.3N.m/42x42x34 mm

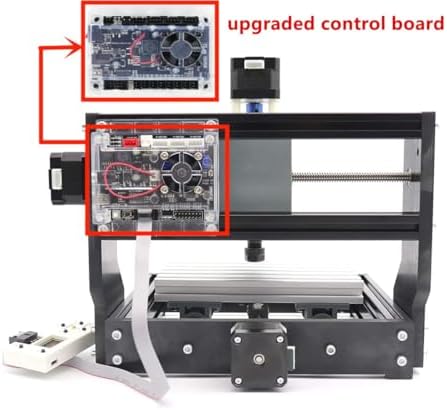

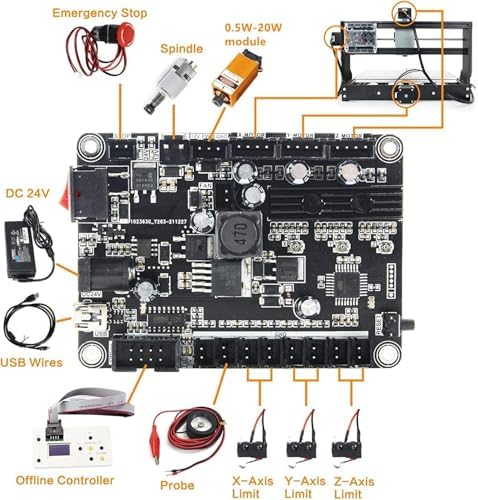

• Upgraded GRBL1.1f Control Board: Added the outer casing,emergency stop button port,tool setting/probe port,X/Y/Z axis limit port and add the power button switch,and come with the fan port to force heat dissipation,with enhanced spindle drive,can support max 20000rpm spindle,and also can support 12V 3-PIN 0.5W-20W engraver module
• Supporting files:G-code nc/txt/tape/gcode; Main application: Can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material,and soft metal like copper and aluminum and other materials etc
• GRBL Software: Our parcel include 4G USB flash drive,pls download the installation instructions,user manual and GRBL software from the USB flash drive; System requirements: Windows XP SP3,Win 7,Win 8,Win 10 32/64 can be and Linux

Overview

• Brand : CNCTOPBAOS
• Material : Aluminum
• Power Source : ac/dc
• Product Dimensions : 7.09"W x 9.84"H
• Voltage : 24 volts_of_direct_current
