About This

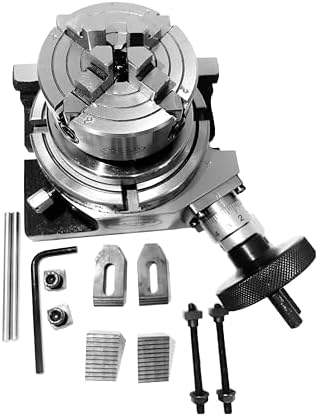

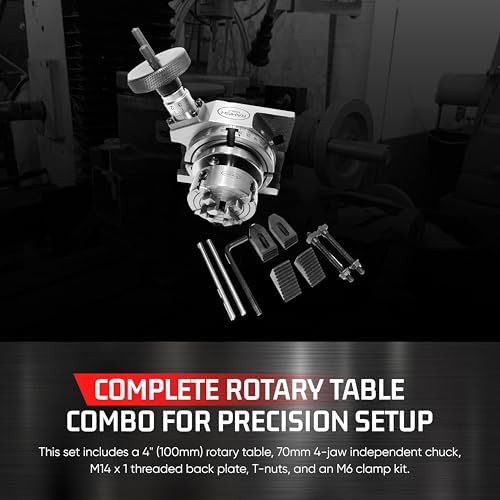

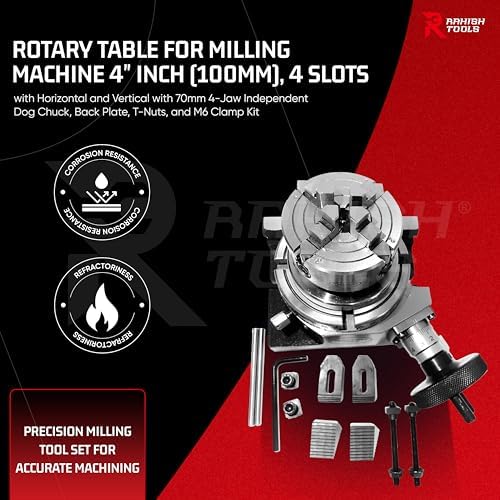

• A great combo of 4""/ 100 mm Rotary table with 70 mm 4 Jaw Independent Chuck with back plates & Tnuts along with M6 clamp kit - A perfect milling combo for smaller mills.

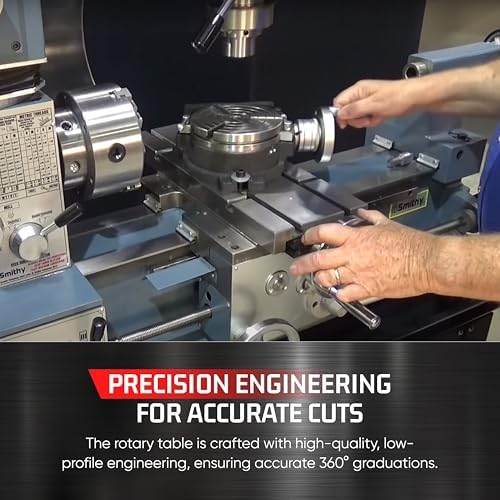

• High Precision Quality Made Low Profile Rotary Table || Center Height in vertical position: 2-1/16"" (50 mm approx) Hand wheel is graduated in divisions of 10 min & can be set to zero || Hand wheel is graduated in divisions of 10 min & can be set to zero.

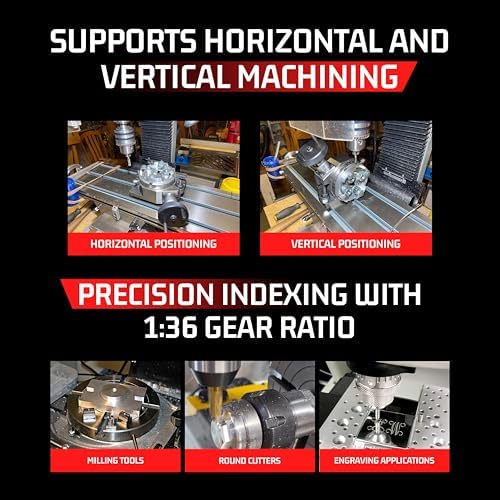

• Can be mounted both in Horizontal & vertical position || Table is graduated 360 Degrees. Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees.
• 70mm 4 Jaw Independent Chuck M14 x 1 mounting Thread || Back Plate also has M14 x 1 thread Spigot to mount the Chuck on it || Back Plate is drilled in a manner that it can be fitted ONLY to 4 Slot Rotary Table || Suitable T -nuts are also supplied

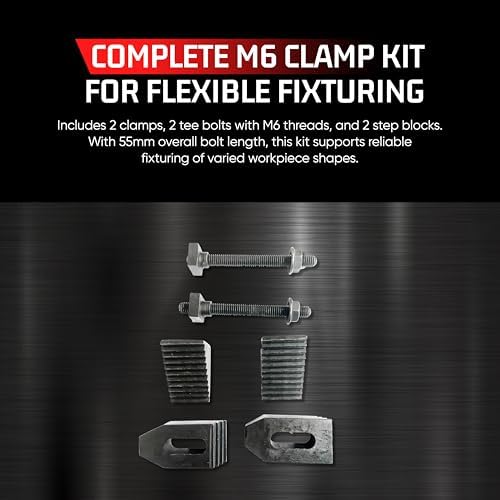

• M6 Clamp kit -Suits to 3"" inches Rotary Table || This Set includes Following: 2 x step blocks 2 x tee bolts with flanged nut 2 x clamps Bolt length: 55 mm overall & Bolt Thread M6
