About This

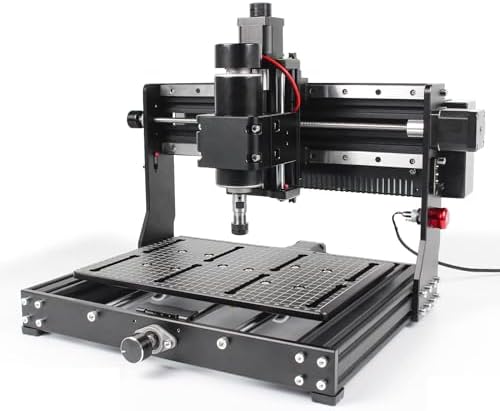

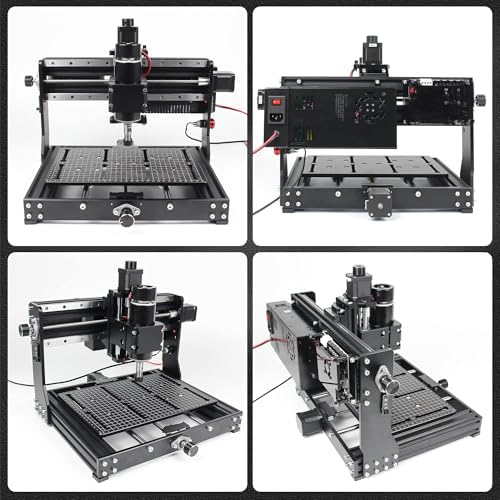

• All Metal Body: The body structure of this 3020 Plus CNC engraving machine is made of All-Metal no plastic parts;It is equipped with 12 mm thick solid double-steel linear guide rail and bearing slide rail; All-metal X-Z axis parts have a vertical stroke of up to 73 mm,these designs enable the machine to move faster,with 0.01 mm high accuracy and stability
• Larger Work Area: Working area is 300x200x73 mm 11.81x7.9x2.9 inch; Overall Size: 460x390x354 mm 18.1x15.4x13.9 inch; The worktable has an accurate scale line,which is convenient to locate and measure the size of the engraving material.The machine is equipped with an emergency stop and six limit switches

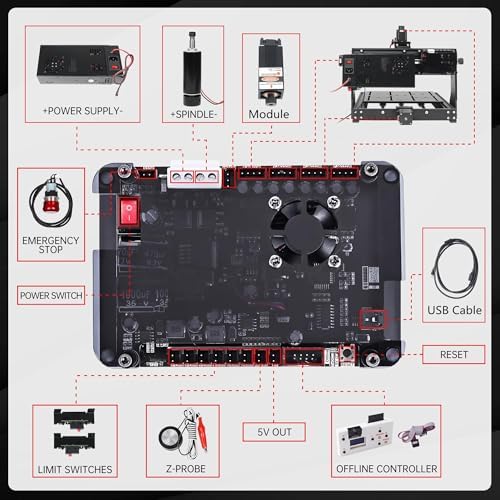

• 500W ER11 Spindle: The 3020 Plus CNC router is equipped with 500 W 48 V 11000 rpm spindle with ER11 collet,which is more powerful and efficient,can cut copper,aluminum and other metals; With the offline controller,it is more convenient to control the machine.

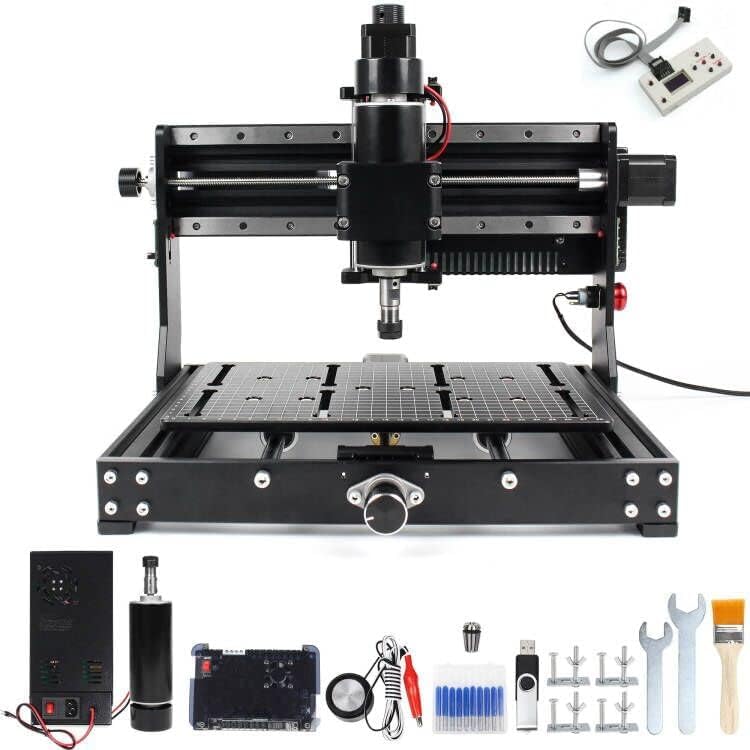

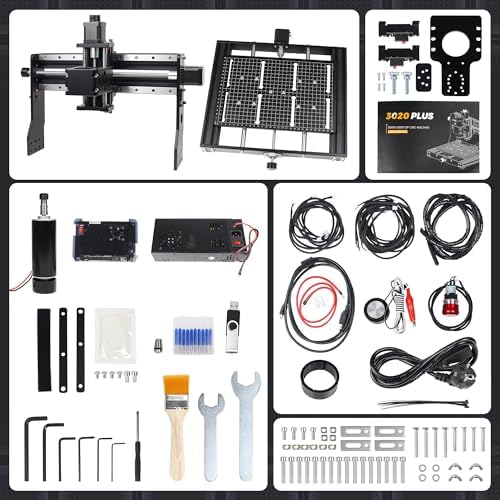

• Supported Software&Systems: CNC engraving machine is compatible with GRBL software/Candle and supports Windows XP/7/8/10 and Linux; The device has been pre-assembled and can be simply assembled after unpacking
• Wide Application: Can engrave on Wood, MDF, Carbon fiber, PCB, PVC, Leather, Paper, Acrylic, Ceramic products, Food, Bamboo, Plastic, Plywood, Stainless steel, Brass, Plexiglass, Aluminum and so on.This machine can both carve and cut.It can cut 8 mm wood products at one time,more easy to create DIY handmade.If it is aluminum material,repeat the path multiple times to carve, and the depth can reach 10 mm

Overview

• Brand : CNCTOPBAOS
• Material : Aluminum
• Power Source : Corded Electric
• Product Dimensions : 13.94"H
• Voltage : 48 volts_of_direct_current
