About This

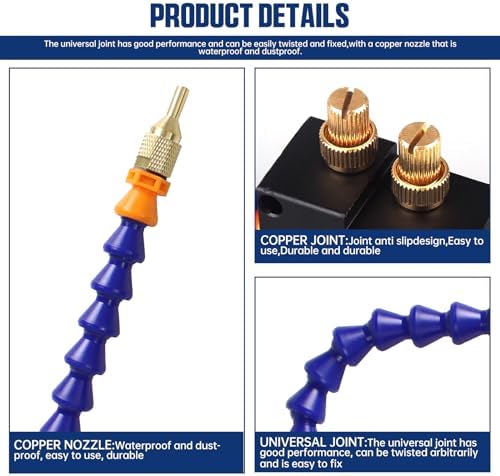

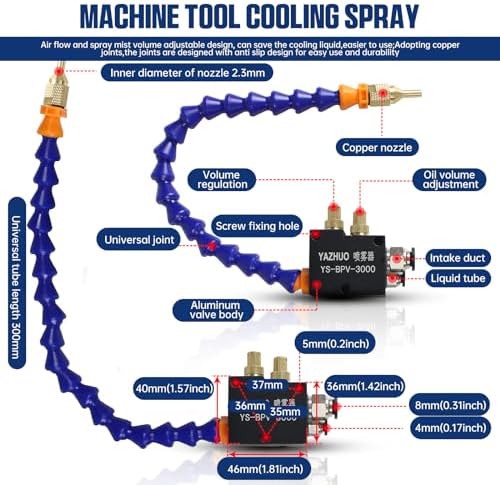

• Two YS-BPV-3000 Cooling Spray Nozzles: Independently adjustable air flow and mist volume save coolant and give you precise control. The left knob adjusts air flow, the right knob adjusts oil/coolant flow. For a coarser spray and less fog, lower the air pressure and restrict the fluid flow. Copper anti-slip joints are durable and easy to connect; the universal joint can be twisted and locked into position. The copper nozzle is waterproof and dustproof

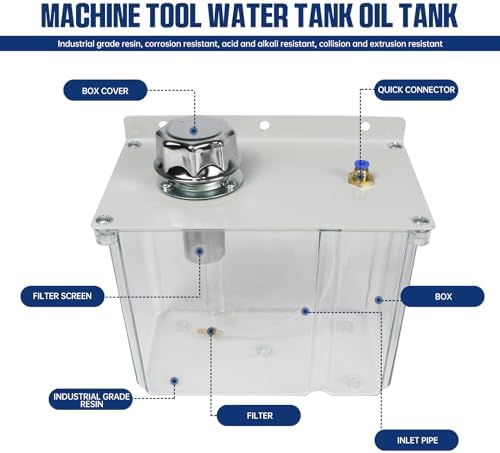

• 3L Water/Oil Tank: Made of industrial-grade resin, this tank is corrosion-resistant, acid/alkali-resistant, and impact-resistant. It comes with a lid and filter screen. Note: The lid is equipped with a black rubber sealing ring. Before tightening the lid, please check that the sealing ring is correctly seated in place to prevent any leakage. Sprayable media: water, alcohol, coolant, engine oil, kerosene, cooking oil, cutting fluid, saponification liquid, diesel oil
• 2-Position 3-Way Solenoid Valve: DC24V, PT1/4 inch inlet/outlet, working pressure 21-114 Psi / 0.15-0.8 MPa. The aluminum alloy valve body with imported sealing parts ensures durability. The red copper coil offers excellent heat resistance for long-term continuous operation, and the high-frequency pilot head responds up to 5 times per second. This valve allows remote on/off control via your CNC controller, making it ideal for automated machining systems

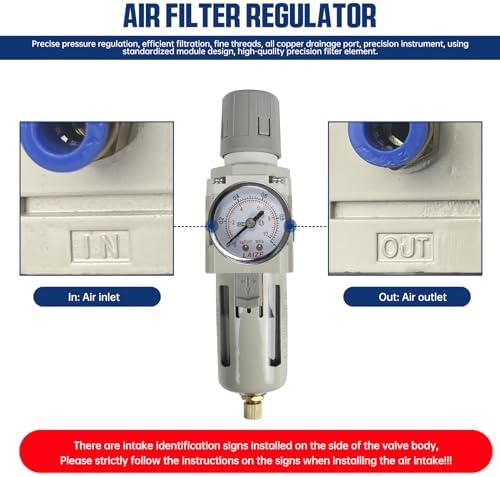

• Air Filter Regulator: 1/4 inch ports, precise pressure regulation, and efficient filtration. The fine threads and all-copper drainage port ensure reliability. Built with a standardized modular design and a high-quality precision filter element, it removes moisture and impurities from the air supply, stabilizes output pressure, and protects the solenoid valve and nozzles for a longer service life
• Wide Application: This mist coolant lubrication spray system provides cooling and lubrication for lathes, milling machines, grinding machines, tapping machines, grinding equipment, CNC machining centers, sawing machines, woodworking equipment, feeders, aluminum processing machinery, drilling machines, and more
