About This

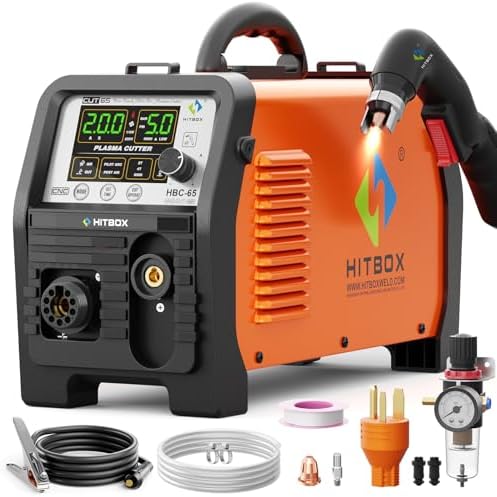

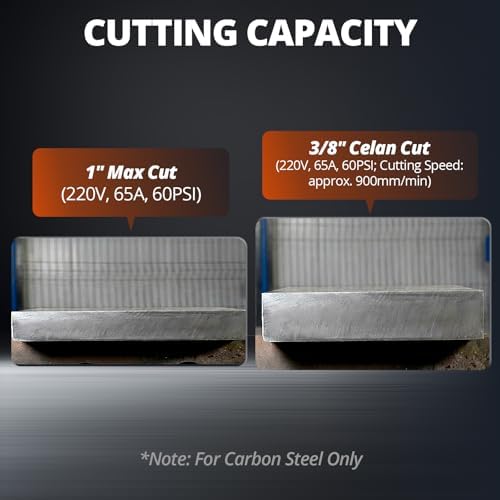

• 65A Plasma Cutter Cuts Up to 1″ – The HITBOX HBC65 is a dual-voltage 110V/220V plasma cutter. Cutting thickness: On 110V, clean: 5/16" (8 mm), maximum: 5/8 " (16 mm); on 220V, clean: 5/8" (16mm), maximum:1"(25 mm). Designed to cut all conductive metals, including carbon steel, iron, galvanized steel, stainless steel, aluminum, copper, brass and so on

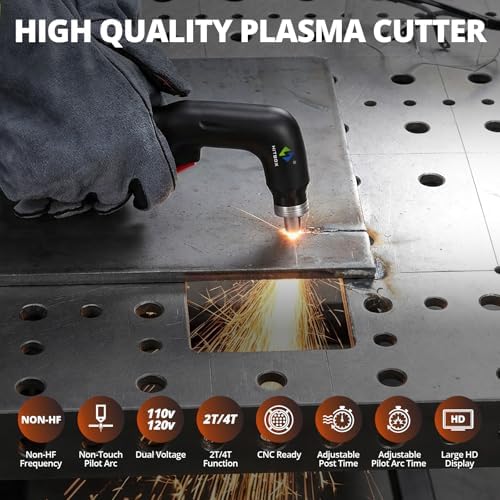

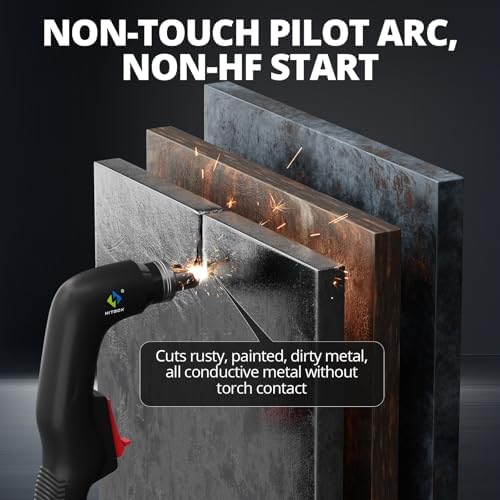

• Non-Touch Pilot Arc, Non-HF Start – Easily cuts rusty, painted, or dirty metal without torch contact. Adjustable pilot arc duration (3–15s; recommended 5–10s manual, 3–5s CNC) improves cut starts, extends consumable life, and reduces interference with nearby electronics or CNC systems

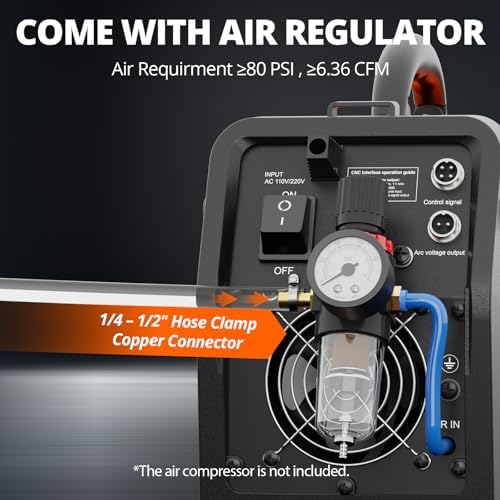

• External Air Compressor Required, 60% Duty Cycle – This plasma cutting machine requires an external air compressor capable of supplying stable air pressure of ≥80 PSI , ≥6.36 CFM, with a recommended working range of 50–60 PSI. The 60% duty cycle provides reliable, stable cutting performance for extended manual or CNC cutting applications
• Smart Protection & Cooling – Built-in digital air monitoring provides alerts when air pressure is too high, and automatically stops cutting with a warning if air pressure drops below 30 PSI to protect consumables. The intelligent fan only activates during cutting or when the internal temperature reaches 40°C (104°F), effectively reducing noise and extending component lifespan

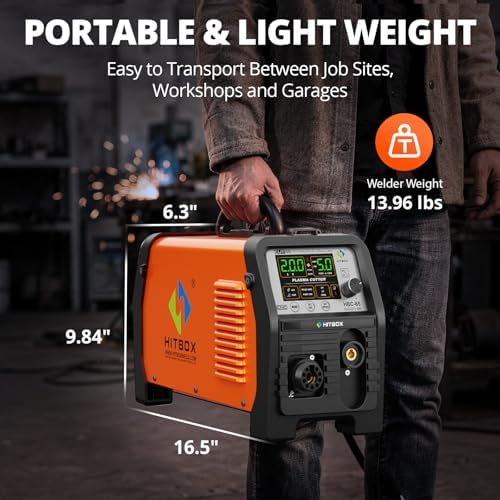

• CNC Ready, Easy Control & Portability – 2T mode offers flexible control, while 4T mode reduces fatigue during long cuts. Adjustable post-flow (2–15s) cools the torch and extends consumable life. CNC-ready design integrates with cutting tables. Weighs only 13.96 lbs with a large HD digital display for clear, precise operation
• 2-Year Quality Service (excluding consumable accessories) – Backed by responsive technical support to assist you whenever needed and ensure a worry-free user experience
