About This

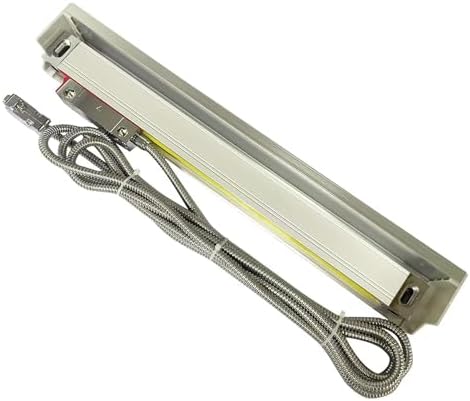

• Optical Linear Scale suitable for metalworking—lathes, cylindrical grinders, mills, surface grinders, boring machines and other machine tools—enabling operators to work faster and more accurately.
• The optical grating linear transducer has been proven as the most reliable system design in today's market. The glass grating slideways are lapped, and JIS standard P5 grade bearings are used to achieve smooth and accurate movement and long working life.

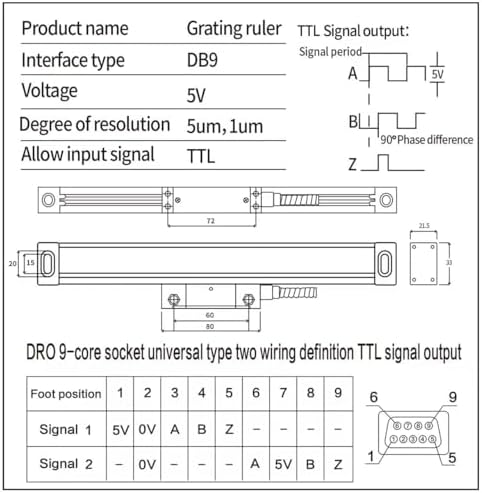

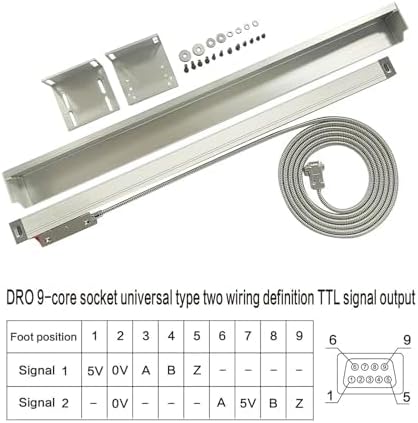

• TTL Square wave input signal through DB9 (RS232) interface with 9pins, default 3meter signal cable applies multilayer shielded wire steel and metal shell protection.
• Glass Linear Scale precision Metrology Grating，Resolution 5um , Accuracy ±5um/ 0.0002" (at 20 deg C);Pulse signal period 20um , Travelling Speed 100m/min，8 bit LED High-definition nixie tube. Have a good capacity of resisting disturbance,durable keyboard,easy to change.

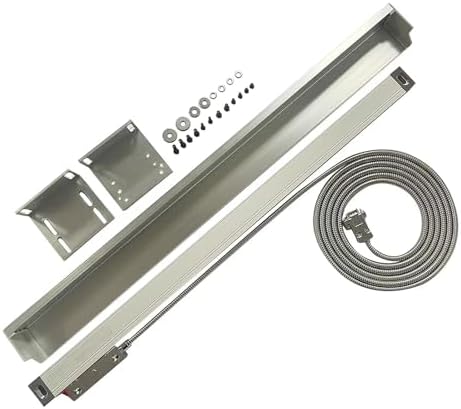

• Order Detail: 1pcs Linear Scale 370mm + Dust cover + L mounting Plate+ Screws + User Manual，and all products will be provided for lifetime technical support!

Overview

• Brand : CHAWED
• Material : Glass
• Measurement Accuracy : +-5um
• Unit Count : 1 Count
• UPC : 692090773256
