About This

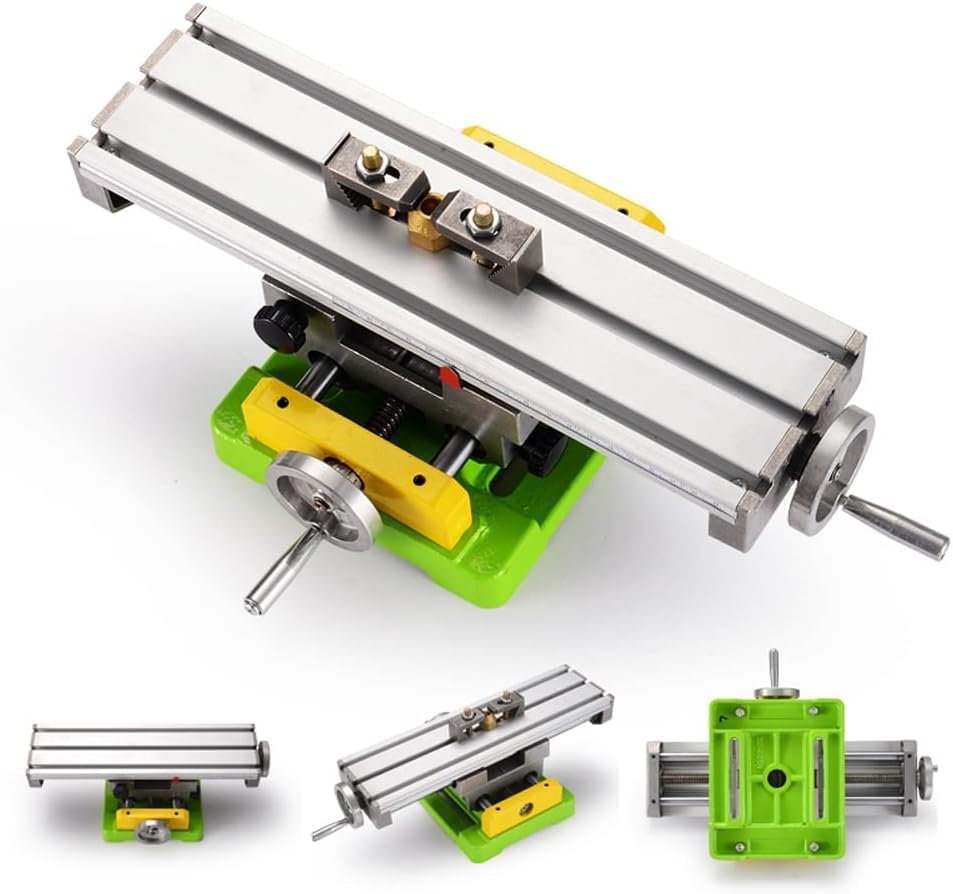

• · Work table size : 13.78inch/350mmx3.94inch/100mm, Height : 4.8inch/122mm.

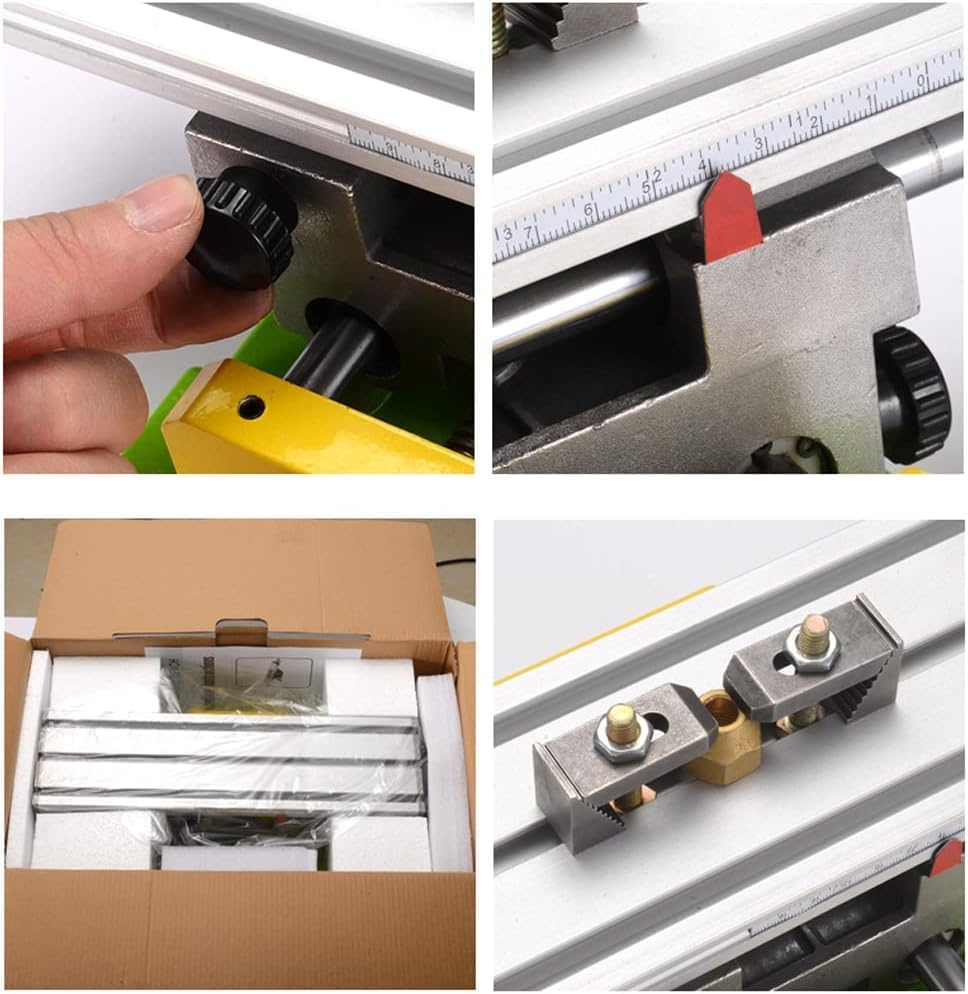

• · Hand wheel with adjustable scale，A ring=3mm. Zero adjustment handwheel rotates a circle of 1.25mm, A lattice is equal to 0.05mm.
• · X axis travel : 7.09inch/180mm,Y axis travel :1.97inch/ 50mm, Distance between grooves : 1.34inch/34mm.

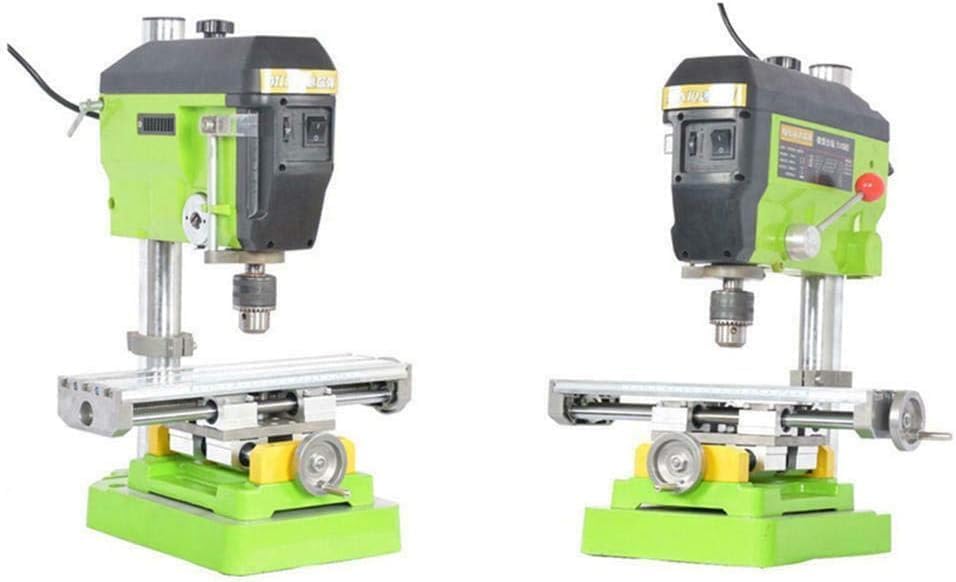

• · This work table is suitable for mini drills and drill bracket series, and can also be applied to other suitable machines.

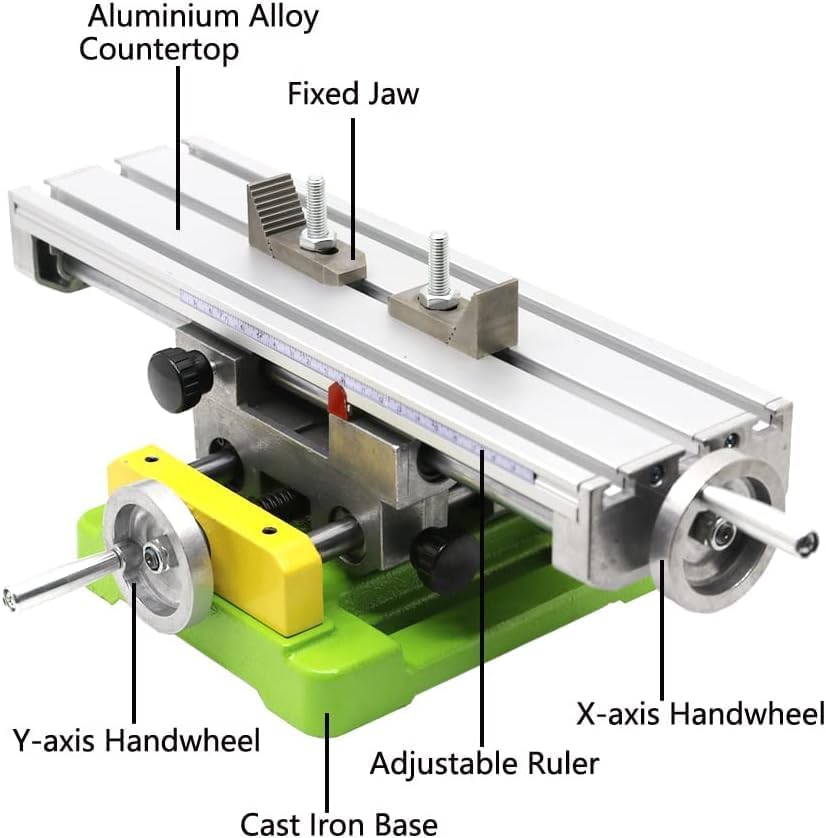

• · This work table is composed of several adjustable dovetail slot aluminum alloy composition, which can ensure minimum space and accuracy.

Overview

• Material : Aluminum, Cast Iron
• Brand : BACHIN
• Item dimensions L x W x H : 15.7 x 9.2 x 6.1 inches
• Color : Green
• Style : Bench Drill Work Table Vise BG6350
• Item Weight : 12 pounds
• Number of Items : 1
• Manufacturer : BACHIN
