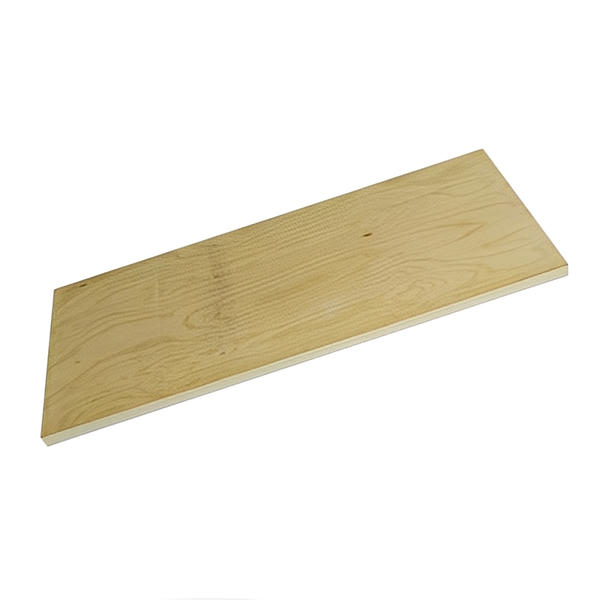

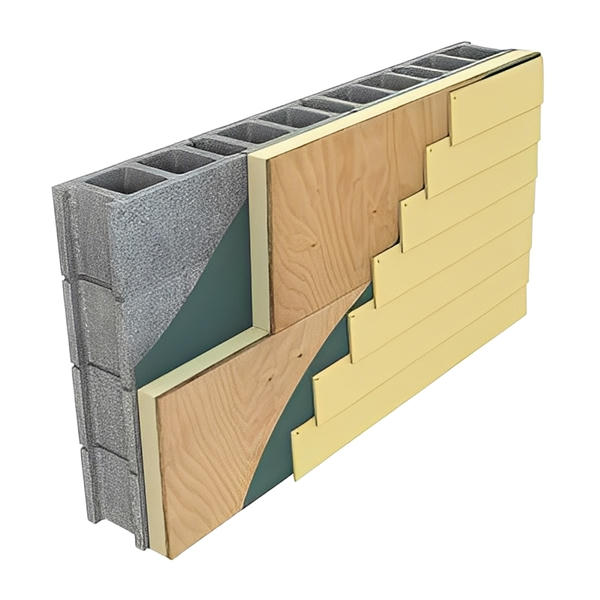

Xci Ply is an energy efficient rigid insulation panel composed of a closed cell polyisocyanurate foam core bonded to a premium performance coated glass facer on one side and 5/8" fire-treated plywood on the other. It is designed for use in commercial wall applications to provide both continuous insulation and a cladding attachment substrate within the building envelope.
| Thickness | R-Value | Sq Ft/Pallet | Sheets Per Pallet |
|---|---|---|---|
| 1.6" | 6.8 | 960 | 30 |
| 2.1" | 9.8 | 704 | 22 |
| 2.6" | 12.9 | 576 | 18 |
| 3.1" | 16.1 | 480 | 15 |
| 3.6" | 19.3 | 416 | 13 |
| 4.1" | 22.5 | 352 | 11 |
| 4.6" | 25.8 | 320 | 10 |
FEATURES AND BENEFITS
- Manufactured with NexGen Chemistry: Zero Ozone Depleting Potential (ODP); Contains no CFC’s or HCFC’s; Virtually zero Global Warming Potential (GWP). The use of Xci products helps reduce the carbon footprint of buildings.
- Polyiso offers increased R-value per inch vs mineral fiber, XPS or EPS options
- Offers a superior combination of high insulating properties and mechanically attachable surface for claddings
- Mitigates thermal bridging from cladding fasteners
- Suitable for above-grade exterior walls in both commercial (Types I-V) and residential construction
- For NFPA 285 compliance information reference applicable DrJ Technical Evaluation Report
- Up to 2” foam thickness + the wood component can be used as structural insulating sheathing. Contact Hunter Xci for shear values, wind loads and attachment requirements.
- Incorporates APA-TECO Rated Exposure 1 Fire Treated Plywood with flame spread of <25 per ASTM E84
- Approved component of the Xci AEGIS Wall System
