Hunter Panels XCI Ply Class A (3/4 Ply Attached) 4ft x 8ft - All Sizes
1.7 in x 4 ft x 8 ft (28 Sheets)
$5,000.00
Sale price
$5,000.00
Regular price
$0.00
Skip to product information
Hunter Panels XCI Ply Class A (3/4 Ply Attached) 4ft x 8ft - All Sizes
$5,000.00
Sale price
$5,000.00
Regular price
$0.00

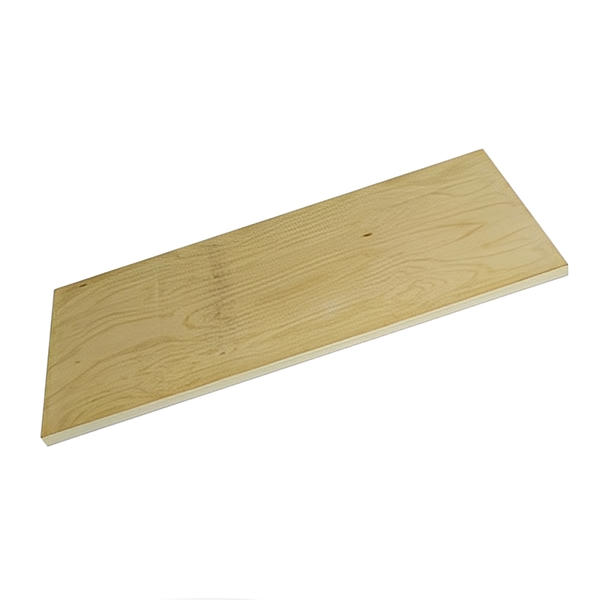

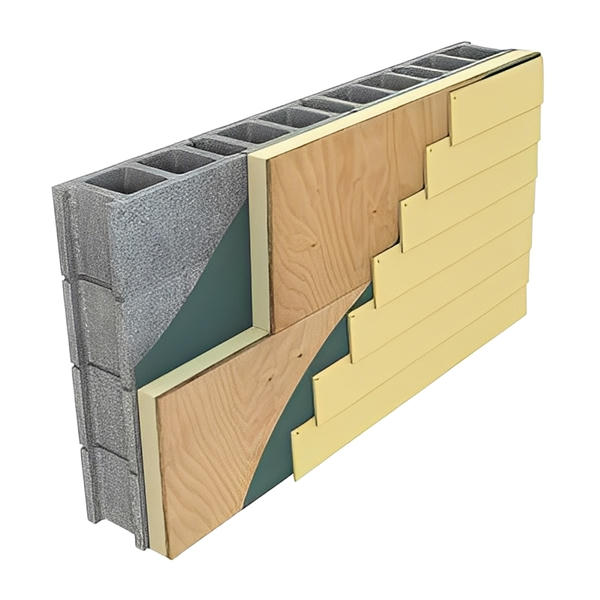

Xci Ply Class A is an energy efficient rigid insulation panel composed of a closed cell class A polyisocyanurate foam core bonded to a premium performance coated glass facer on one side and ¾" fire-treated plywood on the other. It is designed for use in commercial wall applications to provide both continuous insulation and a cladding attachment substrate within the building envelope.
| Thickness | R-Value | Sq Ft/Pallet | Sheets Per Pallet |
|---|---|---|---|
| 1.7" | 7 |
896 |
28 |
| 2.2" | 10 |
672 |
21 |
| 2.7" | 13.1 |
544 |
17 |
| 3.2" | 16.3 |
480 |
15 |
| 3.7" | 19.5 | 384 |
12 |
| 4.2" | 22.7 |
352 |
11 |
Features and Benefits
- Manufactured with NexGen Chemistry: Zero Ozone Depleting Potential (ODP); Contains no CFC’s or HCFC’s; Virtually zero Global Warming Potential (GWP). The use of Xci products helps reduce the carbon footprint of buildings.
- Polyiso offers increased R-value per inch vs mineral fiber, XPS or EPS options
- Offers a superior combination of high insulating properties and mechanically attachable surface for claddings
- Mitigates thermal bridging from cladding fasteners
- Suitable for above-grade exterior walls in both commercial (Types I-V) and residential construction
- For NFPA 285 compliance information reference applicable DrJ Technical Evaluation Report
- Up to 2” foam thickness + the wood component can be used as structural insulating sheathing. Contact Hunter Xci for shear values, wind loads and attachment requirements.
- Incorporates APA-TECO Rated Exposure 1 Fire Treated Plywood with flame spread of <25 per ASTM E84
- Approved component of the Xci AEGIS Wall System
